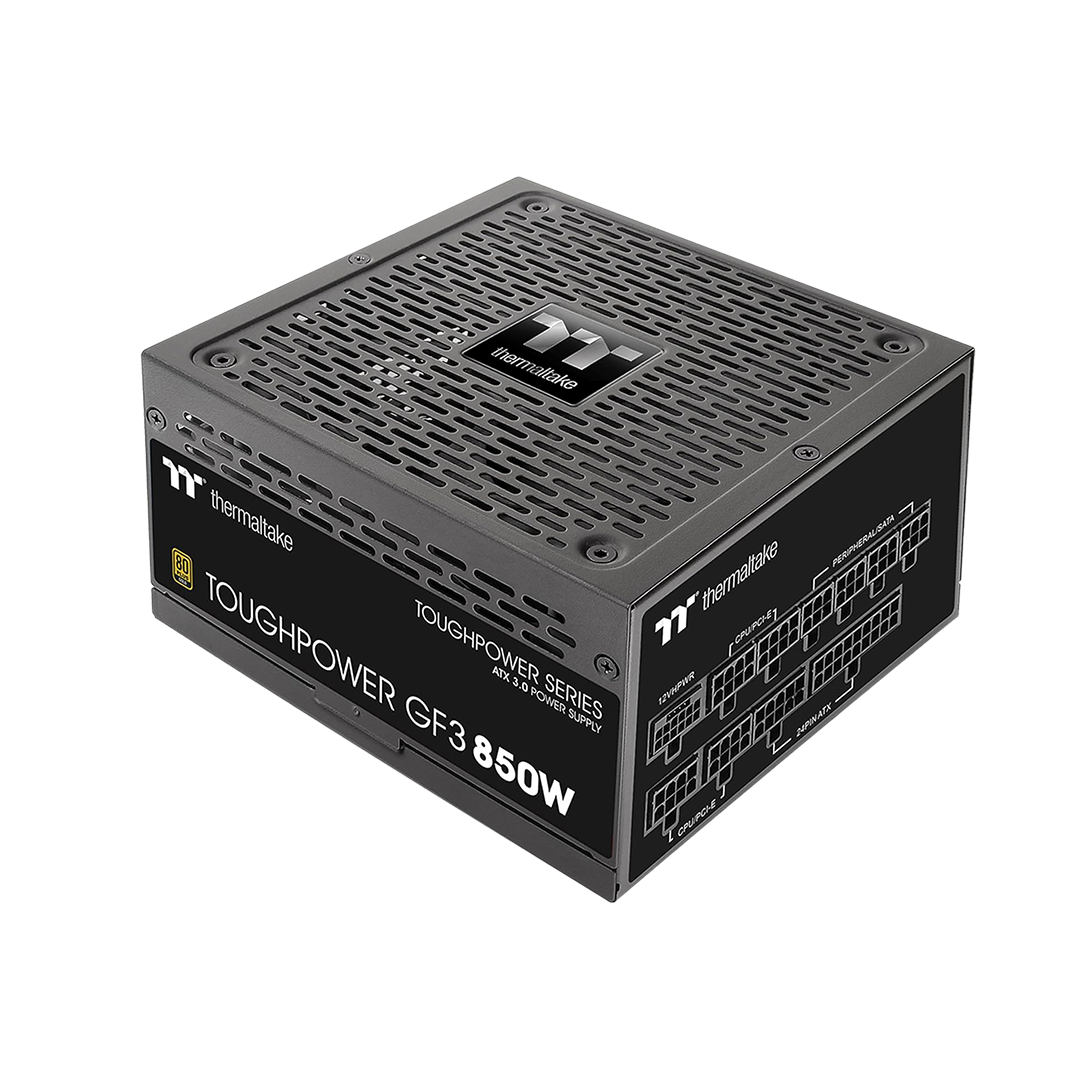

THERMALTAKE TOUGHPOWER GF3 850W Power Supply
THERMALTAKE TOUGHPOWER GF3 850W Power Supply
Regular price
187$
Regular price
Sale price
187$
Unit price
per
Couldn't load pickup availability
THERMALTAKE TOUGHPOWER GF3 850W Power Supply
Designed with a native PCIe 12+4pin connector, the Toughpower GF3 series is compatible with Intel ‘s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards.
The wattage marked on 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of GF3 850W can deliver up to 450W for PCIe 5.0 graphics cards.
| P/N | PS-TPD-0850FNFAGE-4 |
|---|---|
| WATTS | 850W |
| MODEL | TPD-0850AH3FCG |
| MAX. OUTPUT CAPACITY | 850W |
| COULEUR | Black |
| DIMENSION ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(D) |
| WEIGHT | 1.69 KG |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-150 msec |
| HOLD UP TIME | > 17msec at 100% of full load |
| INPUT CURRENT | 10.0A / 5.0A |
| INPUT FREQUENCY RANGE | 50/60 Hz |
| INPUT VOLTAGE | 100V – 240V~ |
| OPERATING TEMPERATURE | 0°C to + 40°C |
| OPERATING HUMIDITY | 20% to 90%,non-condensing |
| STORAGE TEMPERATURE | -20°C to + 70°C |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |
| SYSTÈME DE REFROIDISSEMENT | 13.5cm fluid bearing fan |
| EFFICIENCY | Meet 80 PLUS®Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/CCC |
| CONNECTOR | PCIe 6+2Pin X 4 PCIe 12+4Pin X 1 |
| PROTECTION | OCP, OVP, UVP, OPP, SCP, OTP |
